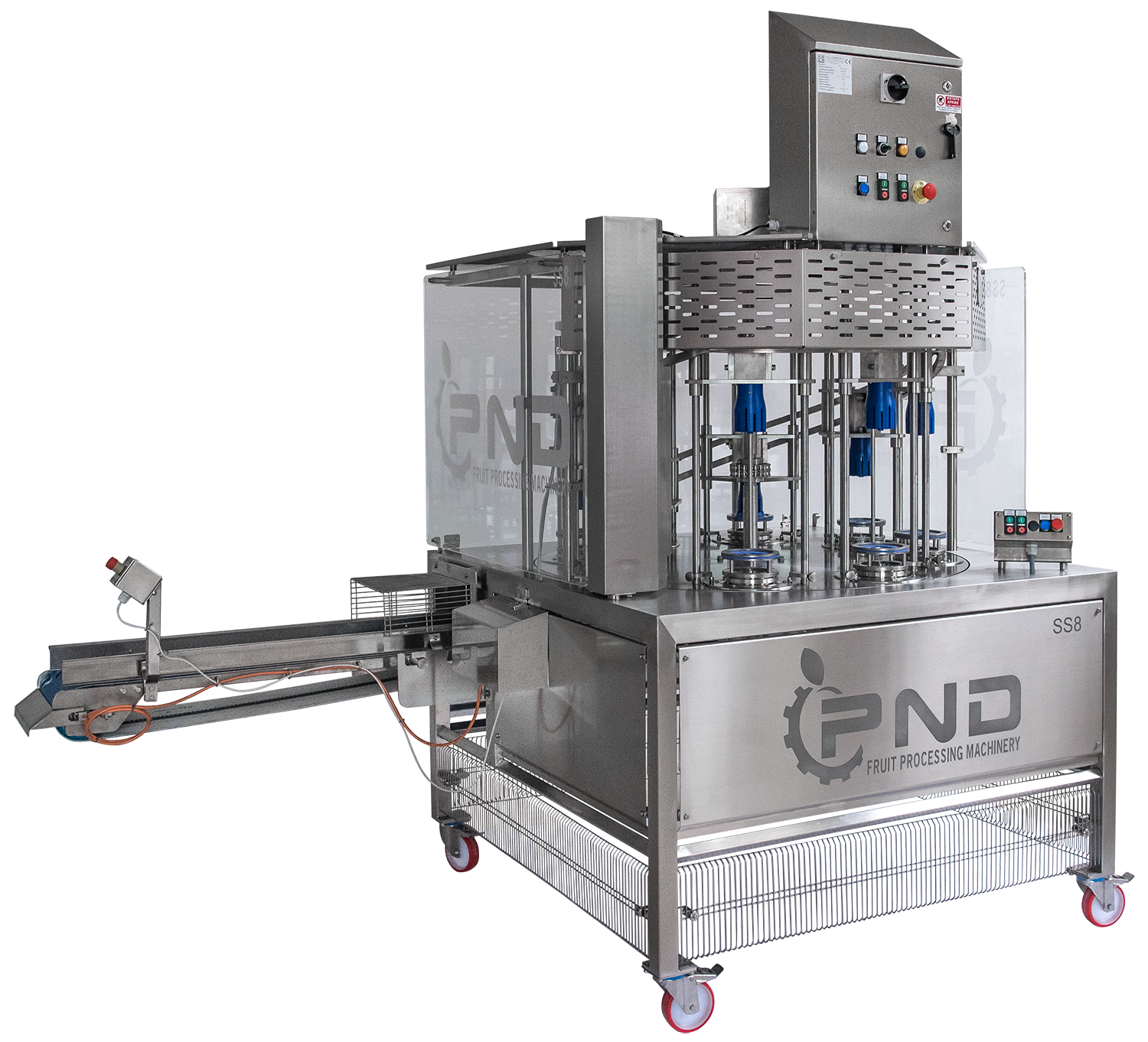

SS8 MAXI
CUTTING MACHINE IN WEDGES, RINGS, CHUNKS AND STICKS
PINEAPPLE AND SMALL FRUIT
APPLE, PEAR, PEACH,
KIWI, MANGO, PINEAPPLE,
MELON, CITRUS, LEMON
stainless steel
for food
| TECHNICAL FEATURES | SS8 MAXI |
|---|---|
| Max Production capacity - Pineapple | 40 fruits/ min |
| Max Production capacity - Small Fruits | 60 fruits/ min |
| Machine dimensions (width x length x height) | 1400x1400xH2400 mm (55.11x55.11xH94.48 in) |
| Conveyor belt dimensions length x width | 1950 x 260 mm (76.77 x 10.23 in) |
| Loading height | 1000 mm (39.37 in) |
| Installed power | 1 kW |
| Weight | 700 Kg (1543 lb) |
| Employee operator | 1 |
The SS8 MAXI cutting machine has been designed for varius fruit sizes processing.
It is a semi-automatic machine, which allows cutting of pineapple, melon, apple, pear, tomato, potato, etc. into different shapes (chunks, slices, wedges, sticks) and dimensions thanks to the possibility of cutters and plungers replacing.
The operator only needs to load the product.
The automatic mechanism is equipped with plungers that push the product through the cutters performing the cut desidered.
The product will be collected on the included conveyor belt.
Advantages:
• Born for big fruits, adapting for small fruit
• High cutting quality
• Very robust machine structure
• Compact size
• Simple and fast maintenance and sanitation
• Electrical panel built according to EEC/IP 65 standards
• Option: self-locking rotating wheels
It is equipped with: Conveyor belt for product.
Built according to the Machinery Directive 2006/42/EC as amended.
ASK FOR YOUR INQUIRY
