PINCYL8

PINEAPPLE CYLINDER MACHINE

green PINCYL8 die cutter icon

PINEAPPLE

colorful pineapple icon
PINCYL8 model coring die cutter
gray outline stainless steel icon

stainless steel

gray outline glass and fork icon

for food

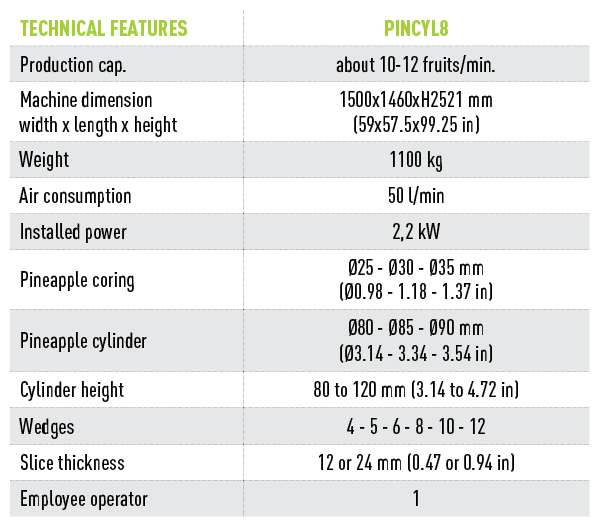

TECHNICAL FEATURESPINCYL8
Production capacityabout 10-12 fruits/min.
Machine dimension width x length x height1500x1460xH2521 mm
(59x57.5x99x25 in)
Weight1100 kg
Air consumption50 l/min
Installed Power2,2kW
Pineapple coringØ25 - Ø30 - Ø35 mm
(Ø0,98 - 1,18 - 1,37 in)
Pineapple cylinderØ80 - Ø85 - Ø90 mm
(Ø3,14 - 3,34 - 3,54 in)
Cylinder height80 to 120 mm
(3.14 to 4.72 in)
Wedges4 - 5 - 6 - 8 - 10 - 12
Slice thickness12 or 24 mm
(0.47 or 0.94 in)
Employee operator1

The semi-automatic cylinder and coring machine at two heads is suitable for pineapple cylinders. An operator loads the fruit and the machine does the job in three steps: coring, top & tail, cylindering.
The cutting operations are optional and can be rings, segments and chunks.
The machine has a stainless steel structure. All components are easily interchangeable. All parts in contact with the fruits are made of food-approved material. Easy and fast cleaning and maintenance.

Technical specifications:
• Stainless steel frame
• Skin and product go separately
• Easy maintenance and hygiene

The machine is equipped with:
• no. 01 Conveyor/Elevator belt for product. dimensions: Width 500 mm; Length 3000 mm.

Machine is made according to 2006/42/CEE regulation & followings.

See technical features
