SCM

WEDGING AND CHUNKING MACHINE

MANGO

RELATED PRODUCTS

stainless steel

for food

TECHNICAL FEATURESSCM
Production capacity36 - 40 fruits/ min
Machine dimensions (width x length x height)1100x3300xH2100 mm
(43.3x130xH83 in)
Installed power1,3 kW
Pneumatic air supply8 bar - 130 l/min
Chunks15-30 mm
(0.6-1.2 in)
Wedges3 - 4
Loading height 1000 mm
(39.4 in)
Weight1100 Kg (2425 lb)
Employee operator 2

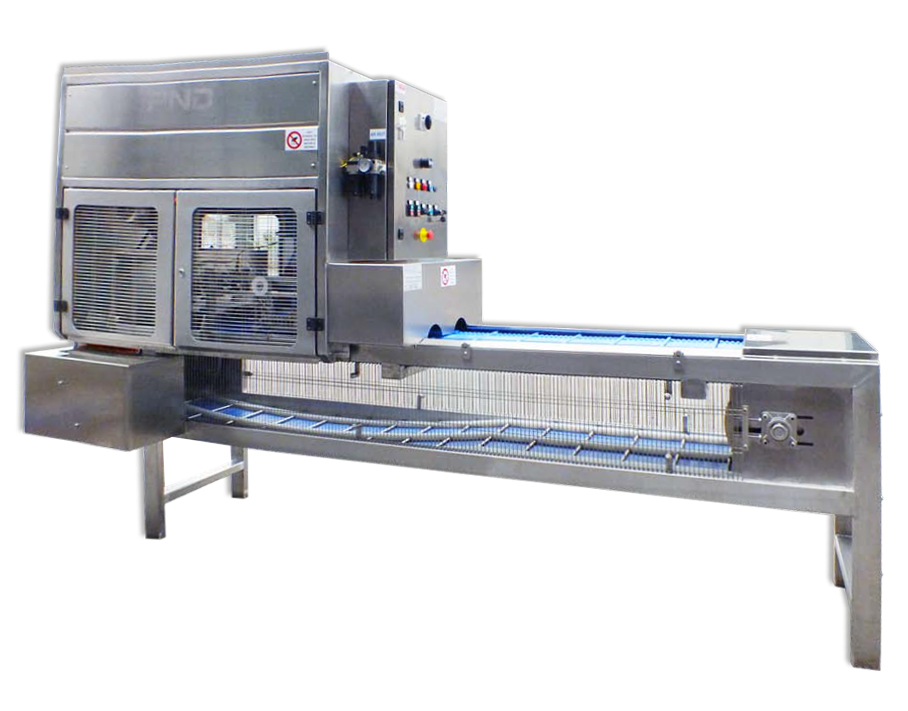

The SCM is a semi-automatic machine designed for cutting mango into wedges and chunks. The operator loads the peeled and halved fruits on an infeed conveyor belt. The machine has a loading belt with two stations and two cutting units: the first cutting unit is a guillotine and performs the horizontal cut. The second cutting unit has circular rotating blades and performs the vertical cut creating fruit wedges. By activating both cutting units, the fruit will be cut into chunks.
In the event that only wedge cutting is desired, the first station can be deactivated.
