ORN8 | ORN6

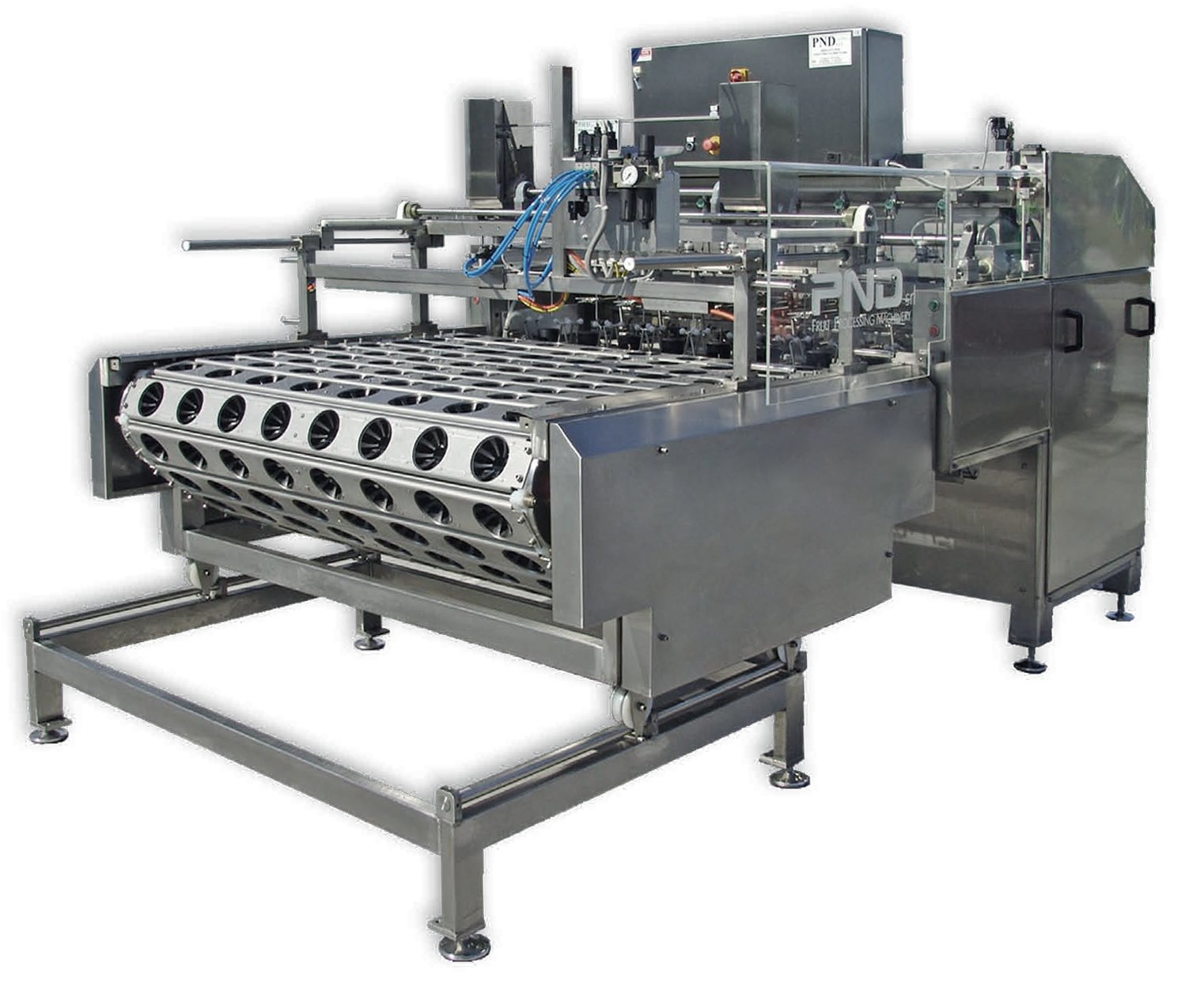

AUTOMATIC FEEDER

APPLE

PRESENT IN THE LINE

stainless steel

for food

TECHNICAL FEATURESORN8ORN6
Machine dimensions
(width x length x height)
3500x1800xH2300 mm
(138x71xH91 inches)
3500x1400xH2300 mm
(138x55xH91 inches)
Installed power4,1 kW4,1 kW
Tank loading height1600 mm
(63 inches)
1600 mm
(63 inches)
Pneumatic air supply5 bar - 52 l/min5 bar - 52 l/min

DESCRIPTION

The automatic feeder, together with the PL6/PL8 peeling machine, makes up the complete automatic production line for apples.
Apples are poured into a tank with water.
From here, they are picked up and transferred to an orientation station.
At this station the apples are oriented with the flower or with the stalk upwards.
The electric panel of the power supply is interfaced with the electric panel of the connected peeling machine for a synchronization of the mechanisms.

See technical features
