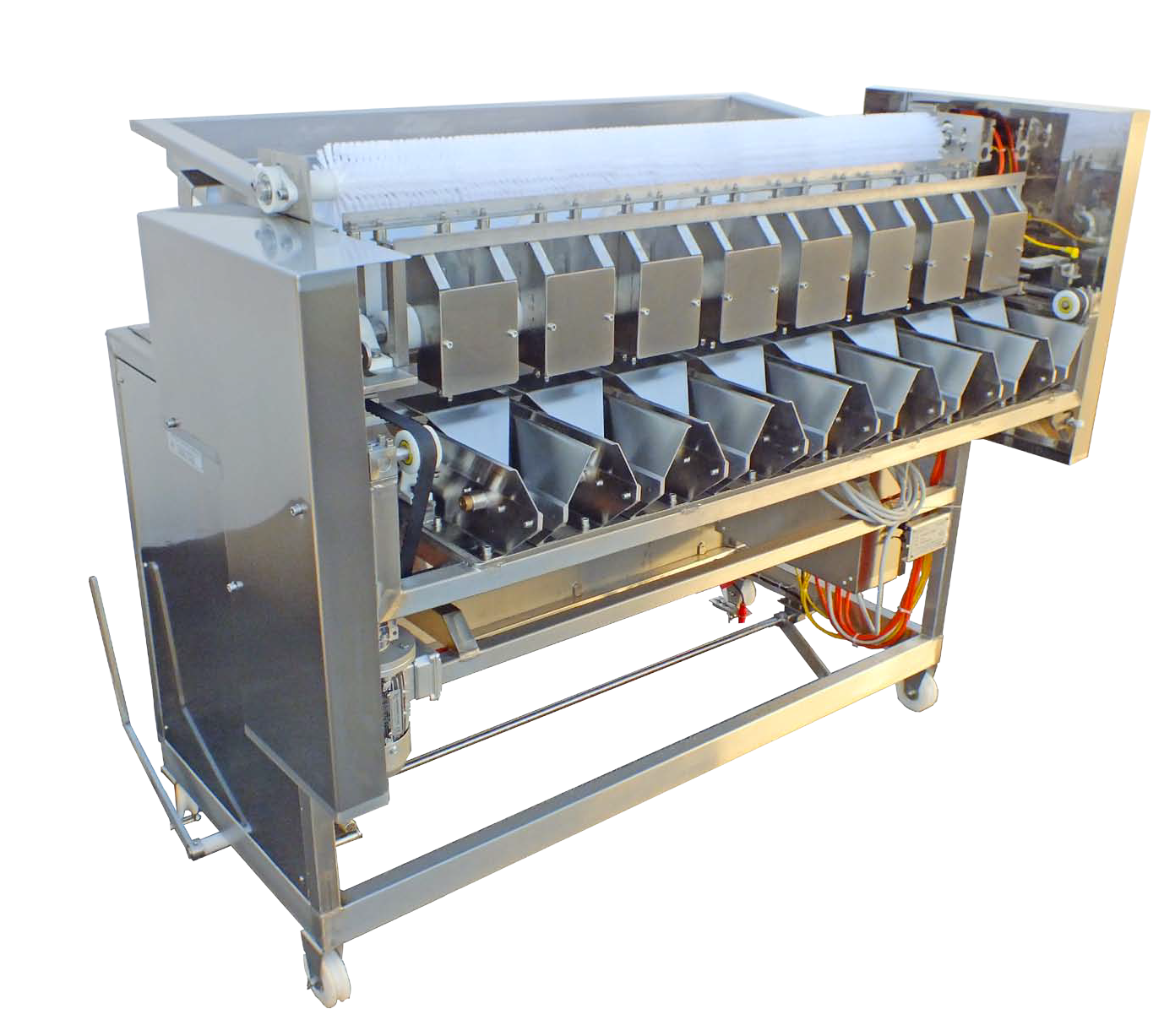

AFP8 | AFP6

AUTOMATIC FEEDER

PEAR

PRESENT IN THE LINE

stainless steel

for food

TECHNICAL FEATURESAFP8AFP6
Loader dimensions
(width x length x height)
1900x2000xH1900 mm
(75x79xH75 in)
1900x1800xH1900 mm
(75x71xH75 in)
Installed power1,4 kW1,4 kW
Fruit sizeØ 60 - 90 mm
(2.36 - 3.54 in)
Ø 60 - 90 mm
(2.36 - 3.54 in)

DESCRIPTION

The automatic feeder, together with the PL6/PL8 peeling machine, makes up the complete automatic production line for Williams pears. From here, they are picked up and transferred to an orientation station. At this station the Williams pears are oriented with the stalk upwards. The electric panel of the power supply is interfaced with the electric panel of the connected peeling machine for a synchronization of the mechanisms.
It is equipped with:
• Hopper for the alignment and distribution of pears.
• Motorised drum to distribute the pears on the alignment
mechanism
• Mechanism to transfer the pears directly into the peeling
machine cups.
